EQUIPMENT SERIES

Additional Drop-Test Configurations

Select a drop-test configuration by package size, mass, orientation and height.

Package drop configuration / Heavy-package configuration / Portable-product configuration / Additional drop-test configuration

Compare configurations Inquire about this series

Additional Drop-Test Configurations — concept illustration — Concept illustration — not a specific product configuration.

APPLICATIONS

Where it fits

Select a drop-test configuration by package size, mass, orientation and height.

SYSTEM DETAILS

Equipment and functions

Four configurations are listed without model codes.
Request the current model and equipment configuration before ordering.

SELECT A CONFIGURATION

Specifications & configurations

Compare models side by side. On smaller screens, swipe within the table; the parameter column stays in place.

Catalog specifications are shown for model selection. Confirm the configuration, units and test conditions in your quotation. Fields marked “Confirmation required” need an agreed specification before ordering.

Additional configurations — model code on request

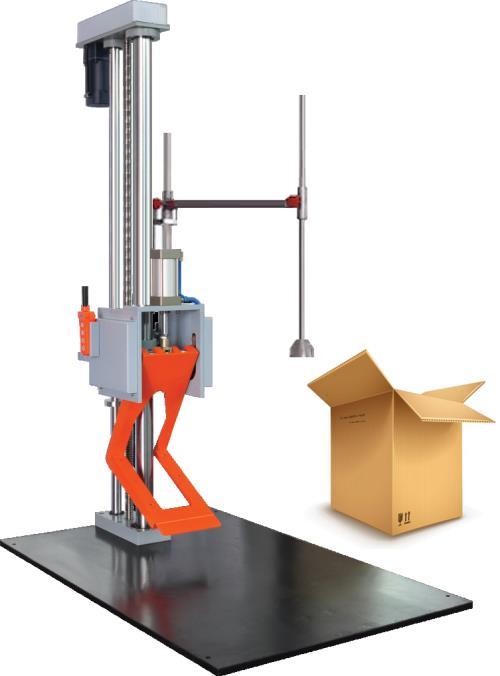

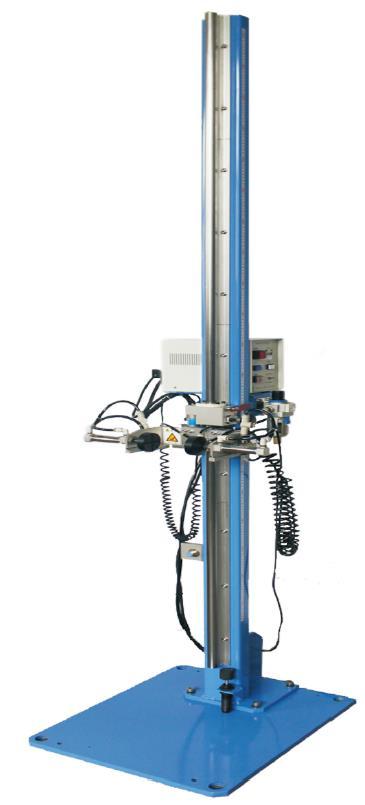

Parameter	Package drop configuration	Heavy-package configuration	Portable-product configuration	Additional drop-test configuration
Payload capacity (kg)	85	300	2	0–300
Maximum specimen/package size (mm)	800 × 800 × 800	1000 × 1200 × 1200	100 × 200	Not listed
Drop-height range (mm)	300–2000	25.4–1200	250–2000	0–2000
Release / test arrangement	Free fall	Free fall	Pneumatic pen-cylinder holder	Not listed

BEFORE ORDERING

Configuration & confirmation notes

These configurations have no model codes in the supplied information. Request the current model and configuration before ordering; do not treat them as specifications of the MDT models.
