MEV Electrodynamic Vibration Systems

Reproduce vibration environments for product development and durability testing. Combine the shaker, amplifier, controller, sensor and cooling equipment for the required test profile.

MEV203 / MEV206 / MEV210 / MEV220 / …

Compare models Inquire about this series

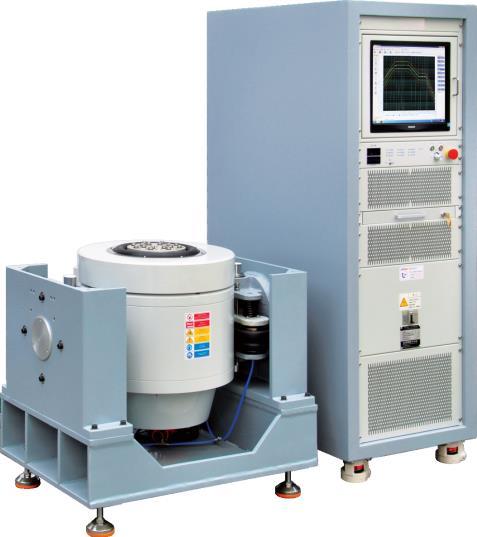

Electrodynamic vibration test system with shaker and amplifier cabinet. Representative catalog photograph.
Representative photo. Catalog equipment photograph; configuration may vary.

APPLICATIONS

Where it fits

  • Reproduce vibration environments for product development and durability testing. Combine the shaker, amplifier, controller, sensor and cooling equipment for the required test profile.

SYSTEM DETAILS

Equipment and functions

  • Air-cooled electrodynamic excitation.
  • Vertical testing, with horizontal testing through a compatible slip table.
  • Reinforced suspension, linear guidance and pneumatic load support.
  • Class-D power amplification and system interlocks.

SELECT A MODEL

Specifications & configurations

Compare models side by side. On smaller screens, swipe within the table; the parameter column stays in place.

Catalog specifications are shown for model selection. Confirm the configuration, units and test conditions in your quotation. Fields marked “Confirmation required” need an agreed specification before ordering.

40–50.8 mm displacement systems · 1–4
ParameterMEV203MEV206MEV210MEV220
Frequency range (Hz)1–25001–30001–30001–3000
Maximum force (kN)2.945.889.821.56
Maximum displacement (mm p-p)4050.850.850.8
Maximum acceleration (g)100100100100
Maximum velocity (cm/s)200200200200
Payload (kg)120200200400
Shaker modelVG300/40VG600/50VG1000/50VG2200/50
Armature mass (kg)361022
Armature diameter (mm)150200240320
CoolingForced airForced airForced airForced air
Shaker weight (kg)46092011001700
Shaker dimensions (L × W × H)Confirmation requiredConfirmation requiredConfirmation requiredConfirmation required
Power amplifierAmp3kAmp6kAmp12kAmp22k
Amplifier weight (kg)250320350500
Amplifier dimensions (L × W × H) (mm)880 × 580 × 1150880 × 580 × 1270880 × 580 × 1690880 × 580 × 1520
Power supplyThree-phase AC 380 V +10%, 50 HzThree-phase AC 380 V +10%, 50 HzThree-phase AC 380 V +10%, 50 HzThree-phase AC 380 V +10%, 50 Hz
Total power (kW)9202535
40–50.8 mm displacement systems · 5–8
ParameterMEV232MEV240MEV250MEV260
Frequency range (Hz)1–30002–25001–25001–2700
Maximum force (kN)31.3639.24958.8
Maximum displacement (mm p-p)50.850.850.850.8
Maximum acceleration (g)100100100100
Maximum velocity (cm/s)200200200200
Payload (kg)4005008001000
Shaker modelVG3200/50VG4000/50VG5000/50VG6000/50
Armature mass (kg)32405050
Armature diameter (mm)400440445445
CoolingForced airForced airForced airForced air
Shaker weight (kg)2500250035004500
Shaker dimensions (L × W × H)Confirmation requiredConfirmation requiredConfirmation requiredConfirmation required
Power amplifierAmp35kAmp50kAmp60kAmp70k
Amplifier weight (kg)5506008001000
Amplifier dimensions (L × W × H) (mm)910 × 620 × 1550910 × 620 × 2000910 × 620 × 2000910 × 620 × 2000
Power supplyThree-phase AC 380 V +10%, 50 HzThree-phase AC 380 V +10%, 50 HzThree-phase AC 380 V +10%, 50 HzThree-phase AC 380 V +10%, 50 Hz
Total power (kW)56567575
76.2–101.6 mm displacement systems · 1–4
ParameterMEV320MEV330MEV340MEV350
Frequency range (Hz)1–30001–27001–27001–2500
Maximum force (kN)19.629.439.249
Maximum displacement (mm p-p)76.276.276.276.2
Maximum acceleration (g)808510082
Maximum velocity (cm/s)200200200200
Payload (kg)4004005001000
Shaker modelVG2200VG3200VG4000VG5000
Armature mass (kg)25353560
Armature diameter (mm)320320440440
CoolingForced airForced airForced airForced air
Shaker weight (kg)1700250035003500
Shaker dimensions (L × W × H) (mm)1200 × 870 × 11301270 × 980 × 11401650 × 1150 × 12801650 × 1150 × 1280
Power amplifierAmp30kAmp40kAmp50kAmp70k
Amplifier weight (kg)550600800900
Amplifier dimensions (L × W × H) (mm)880 × 580 × 1520910 × 620 × 1550910 × 620 × 2000910 × 620 × 2000
Power supplyThree-phase AC 380 V +10%, 50 HzThree-phase AC 380 V +10%, 50 HzThree-phase AC 380 V +10%, 50 HzThree-phase AC 380 V +10%, 50 Hz
Total power (kW)40567575
76.2–101.6 mm displacement systems · 5–8
ParameterMEV360MEV420MEV430MEV440
Frequency range (Hz)1–25001–30001–25001–2500
Maximum force (kN)58.819.631.3639.2
Maximum displacement (mm p-p)76.2101.6101.6101.6
Maximum acceleration (g)1006685100
Maximum velocity (cm/s)200200250250
Payload (kg)1000400500500
Shaker modelVG6000VG2000VG3200VG4000
Armature mass (kg)55303535
Armature diameter (mm)445320400445
CoolingForced airForced airForced airForced air
Shaker weight (kg)4500170025003500
Shaker dimensions (L × W × H) (mm)1650 × 1150 × 12801200 × 870 × 11301270 × 980 × 11401650 × 1150 × 1280
Power amplifierAmp70kAmp22kAmp40kAmp60k
Amplifier weight (kg)1000550600800
Amplifier dimensions (L × W × H) (mm)910 × 620 × 2000880 × 580 × 1520910 × 620 × 1550910 × 620 × 2025
Power supplyThree-phase AC 380 V +10%, 50 HzThree-phase AC 380 V +10%, 50 HzThree-phase AC 380 V +10%, 50 HzThree-phase AC 380 V +10%, 50 Hz
Total power (kW)75455675
76.2–101.6 mm displacement systems · 9–10
ParameterMEV450MEV460
Frequency range (Hz)1–25001–2500
Maximum force (kN)4958.8
Maximum displacement (mm p-p)101.6101.6
Maximum acceleration (g)82100
Maximum velocity (cm/s)250200
Payload (kg)10001000
Shaker modelVG5000VG6000
Armature mass (kg)6060
Armature diameter (mm)445445
CoolingForced airForced air
Shaker weight (kg)45004500
Shaker dimensions (L × W × H) (mm)1650 × 1150 × 12801650 × 1150 × 1280
Power amplifierAmp70kAmp70k
Amplifier weight (kg)900900
Amplifier dimensions (L × W × H) (mm)910 × 620 × 2000910 × 620 × 2000
Power supplyThree-phase AC 380 V +10%, 50 HzThree-phase AC 380 V +10%, 50 Hz
Total power (kW)7575
Additional model options
ParameterMEV050MEV230
Installation dimensionsConfirmation requiredConfirmation required

BEFORE ORDERING

Configuration & confirmation notes

  • Acceleration, velocity and displacement are separate maximum ratings; their simultaneous availability depends on the test profile and payload.
  • Specify the controller software and required vibration modes when requesting a system.
  • Confirm the installation drawing and shaker dimensions for the selected configuration.
  • MEV050 and MEV230 are also listed in the catalog. Their ratings are available on request; MEV230 is not treated as MEV232.
